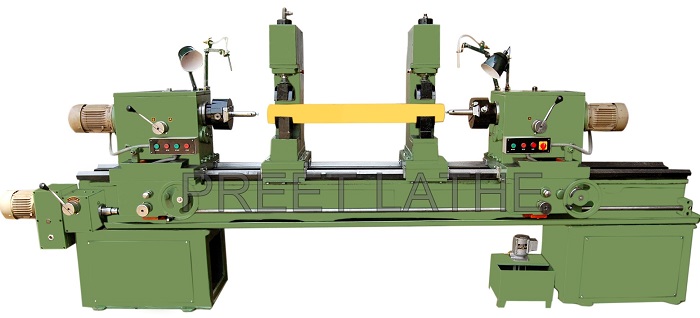

DOUBLE ENDED CONVEYOR IDLER HORIZONTAL BORING MACHINE(Hydraulically & Mechanically Operated)

Preet Lathe’s The DOUBLE ENDED CONVEYOR IDLER HORIZONTAL BORING MACHINE also known as Conveyor Pipe Boring Machine is designed for finest finishes and takes up heavy load. It falls under Special Purpose Machinery (SPM) Category for Simultaneous Boring of Belt Conveyor Rollers. It has one bed there are two work heads with independent motors at rear and revolving machining tools post on front which has independent controls.

Our Conveyor Horizontal Boring Preet Lathe’s SPM Machinery comes along with a Coolant pump which is provided for cooling effect while machining the Conveyor Pipe Ends on both the sides. We have provided Limit Switches for automatic cut off ‘feed' of machining once it is achieved as per our requirement or setting. Between the two Head Stocks on Bed, there are two Pipe Holding devices are provided which are be provided either with Manual hold or Hydraulic hold. A separate motor is provided for Lead Screw for Auto Feed and Auto Cut Off. This machine is One of Its Kind.

Double Head Boring Machine

Standard Accessories:
  Carbide Tips    Key Set
  Spanner Set   Oil Can
  Cylinder Seal Set

  Specifications:    Double Ended Conveyor Idler Horizonal Boring Machine

Length -

12.5'

Admit Between Centers -

2000mm

Spindle Drive -

Geared

Speed(Numbers)

2

Speed RPM -

70rpm-110rpm

Maximum Length of Pipe -

2000mm

Minimum Length of Pipe -

200mm

Maximum Dia of Pipe -

160mm

Minimum Dia of Pipe -

80mm

2 Head Stroke Motors(ISI/CE Certified) -

2 H.P. 3Ph. 1440rpm

1 Auto Feed Motor(ISI/CE Certified) -

1 H.P. 3Ph. 960rpm

1 PowerPack Motor(ISI/CE Certified) -

2 H.P. 3Ph. 1440rpm

2 Chucks -

Included

2 Cutters -

Included

2 Cooling Equipments -

Included

Flame Hardened Bed -

Hardened Bed

2 Assembly Lights -

Included

Limit Switches -

Included

  Hydraulic Pipe Holder System -

Included
